Home » Products » NMEA 2000 » Monitoring & Alarms » BM100 – Battery monitoring system for NMEA 2000 systems
boat battery monitoring
Click to enlarge
boat battery monitoring

BM100 – Battery monitoring system for NMEA 2000 systems

$399.95

“The BM100 is a complete system comprising SmartShunt and veKonvert NMEA 2000 interface.  It is part of Digital Yacht’s iSeaSense range of NMEA 2000 boat instruments. With this solution, your multi function display becomes a sophisticated battery and energy management system.”

SKU: ZDIGISSBM100 Categories: Electrical, Monitoring & Alarms, NMEA 2000 Tags: battery monitoring, BM100, electrical, Smartshunts, vE.Direct, Victron
  • Description
  • Additional information
  • FAQs
Description

KEY FEATURES

Digital Yacht’s new BM100 battery monitoring system allows highly accurate DC voltage, current and capacity measurements enabling reliable monitoring of your boat’s battery and electrical system.

Core to the system is the SmartShunt. It measures battery voltage and current. Based on these measurements, it intelligently calculates the battery’s state of charge and the time to depletion for the remaining charge. It also keeps track of historical data, such as deepest discharge and average discharge current as well as the number of charge and discharge cycles. The smart shunt can also monitor the voltage of a 2nd battery – typically dedicated to engine starting.

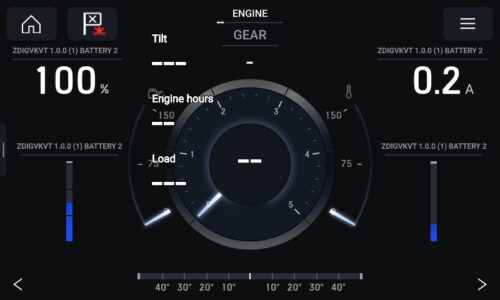

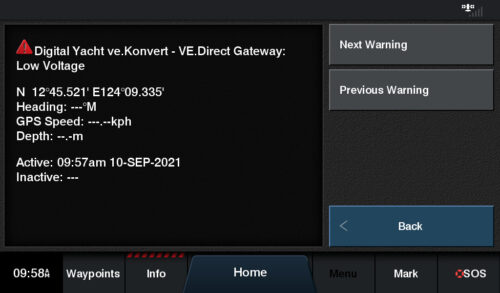

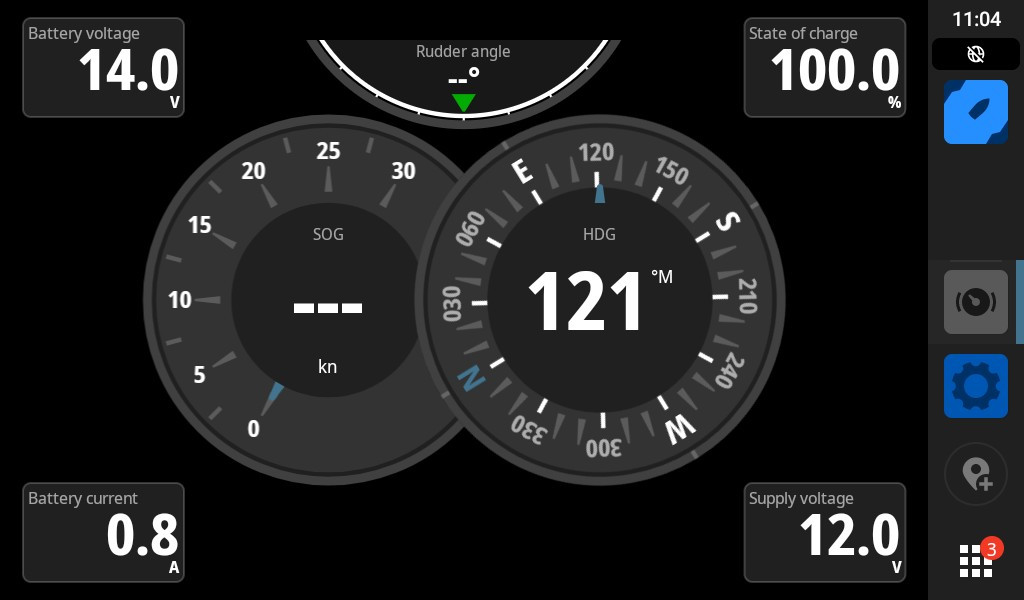

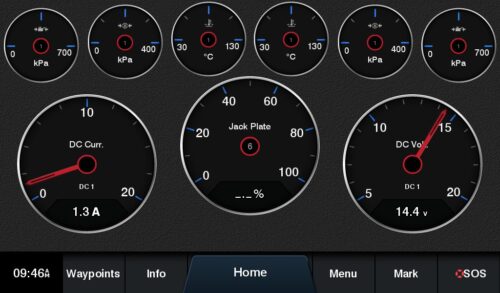

The system features a NMEA 2000 interface so your navigation multi-function display or plotter can display all key parameters. Modern MFDs from leading manufacturers such as Garmin, Raymarine, Furuno and Navico allow electrical battery data to be displayed via their NMEA 2000 interface. Alarms and alerts for low capacity and voltage can also be enabled.

The BM100 also has a standalone wireless Bluetooth interface so your mobile phone or iPad can connect and display current, voltage, capacity, additional historical data, state of charge information and time to go based on remaining battery capacity.

The product is a collaboration between Victron Energy and Digital Yacht. The system utilises Victron’s proprietary VE.Direct data connectivity as a source for the NMEA 2000 data.

The BM100 is part of a wider group of products now introduced by Digital Yacht which bring NMEA 2000 connectivity to Victron systems using the VE.Direct interface.

Victron solar panel controllers (MPPTs) and battery monitors can now also interconnect to NMEA 2000 via the veKonvert interface.

We’re increasingly reliant on DC battery electrical power while afloat for lighting, refrigeration, pumps, winches etc so having accurate battery information and monitoring charge from various sources is essential. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature.

Monitoring the battery with the BM100 will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life. There’s also an optional battery temperature sensor available.

The BM100 can also integrate with Digital Yacht’s other NMEA 2000 and wireless instruments which offer a hybrid NMEA 2000 and wireless display options.

SPECIFICATIONS

  • BM100 solution comes as a complete package with SmartShunt and veKonvert NMEA 2000 interface.
  • Bluetooth interface for setup and detailed analysis including charge/discharge cycles, state of charge, remaining capacity and historical data
  • Use your phone/tablet and your NMEA 2000 devices for battery monitoring and management
  • 500A SmartShunt included for main battery system
  • Monitor voltage of a separate (eg starter) battery
  • Universal NMEA 2000 gateway for Victron’s popular range of smart battery monitors/SmartShunt using VE.Direct interface (see compatibility list in the FAQ tab)
  • Enables electrical and battery monitoring and management on compatible multi functions displays (Raymarine, Garmin, Navico, Furuno etc)
  • Provides battery voltage and charge/discharge current, state of charge and time to depletion based on sophisticated algorithm
  • Easy installation, plug ‘n play connectivity and self-powered from the NMEA 2000 bus
  • Supports alerts generated by the SmartShunt
  • Supports multiple SmartShunts for multi battery systems
  • Also compatible with other VE.Direct products such as solar MPPT controllers
Additional information
Weight 400 g
FAQs

veKonvert is compatible with the following Victron products…

  • BMV -700
  • BMV -702
  • BMV -700H
  • BMV-712 Smart
  • BMV-710H Smart
  • BMV-712 Smart Rev2
  • SmartShunt 500A/50mV
  • SmartShunt 1000A/50mV
  • SmartShunt 2000A/50mV
  • All MPPT Charge Controllers

NOTE – veKonvert is not compatible with Victron Chargers and Inverters. It should also not be plugged in to the VE.Direct interfaces of any Victron “Consumers” such as Multiplus, Quattro, Cerbo, etc.

veKonvert connects to the SmartShunt via the veDirect interface.  All calibration of the boat’s battery capacity etc is done via the Bluetooth interface integrated into the SmartShunt.  Download the Victron app and follow the set up instructions included with the SmartShunt.  There’s no calibration required on the veKonvert interface

Yes

Most popular MFDs show real time battery voltage, charge/discharge current, state of charge and capacity remaining.  The Victron app will also provide additional historical information which is useful for battery maintenance.

Yes.  Each battery bank will require a veKonvert interface.

As standard the BM100 includes a 500A shunt.  1000A and 2000A variants are available to special order.  Please contact us.
